Hitachi

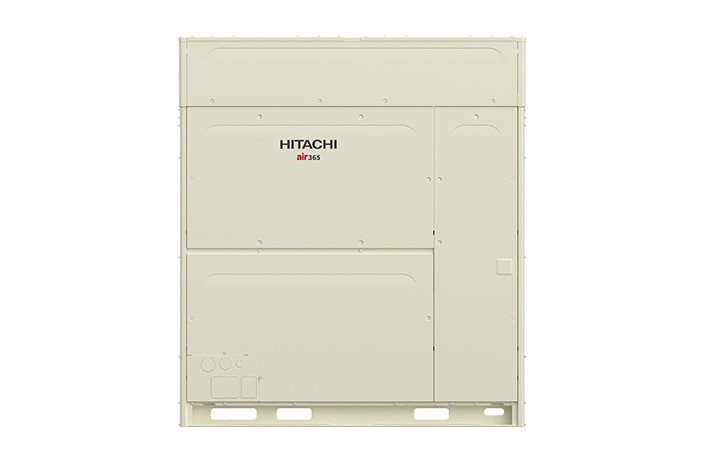

Hitachi air365 Max RAS-080HNCCLI
VRF / VRV outdoor unit
AvailabilitySpecial orderLead time 7 weeks
- System family
- hitachi_air365_max_r410a
- Nominal cooling capacity
- 22.4kW
- Nominal heating capacity
- 25.0kW
- Refrigerant
- R410A
- Compressor type
- Scroll
- Inverter compressor
- Yes
Henrik can take it from here.Sizing, pairing, budget price and lead time to your site.
Prices are not shown online. Henrik and the team quote them, excluding VAT.
Technical data
Identity
- System family
- hitachi_air365_max_r410a
Capacity
- Nominal cooling capacity
- 22.4 kW
- Nominal heating capacity
- 25.0 kW
Refrigeration
- Refrigerant
- R410A
- Compressor type
- Scroll
- Inverter compressor
- Yes
Refrigerant piping
- Liquid pipe diameter
- 9.52 mm
- Gas pipe diameter
- 19.05 mm
- Max total pipe length
- 1000 m
VRF system
- Pipe system
- Two pipe heat pump
- Capacity index
- 224
- Outdoor unit size
- 8 HP
- Max connectable indoor units
- 20
- Min connection ratio
- 50 %
- Max connection ratio
- 200 %
Electrical
- Power supply
- Three
- Frequency
- 50
Acoustics
- Sound pressure
- 52 dB(A)
Operating envelope
- Min outdoor temperature (cooling)
- -5 °C
- Max outdoor temperature (cooling)
- 52 °C
- Min outdoor temperature (heating)
- -25 °C
Physical
- Height
- 1805 mm
- Width
- 975 mm
- Depth
- 775 mm
- Weight
- 207 kg
Suitability
- Used in / applications
- Office, Hotel hospitality, Retail, Healthcare, Education, High rise
Commercial
- Warranty
- 2 years
- Country of origin
- Japan
From the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
