Toshiba
Toshiba Digital Inverter Standard Duct RAV-HM561BTP-E
Toshiba Digital Inverter Standard Duct R
AvailabilityIn stockLead time 2 days
- Nominal cooling capacity
- 5.0kW
- Nominal heating capacity
- 5.3kW
- Power input (cooling)
- 1.83kW
- Rating standard
- En 14825
- EER (standard condition)
- 2.73
- COP (heating)
- 3.27
Henrik can take it from here.Sizing, pairing, budget price and lead time to your site.
Prices are not shown online. Henrik and the team quote them, excluding VAT.
Technical data
Capacity
- Nominal cooling capacity
- 5.0 kW
- Nominal heating capacity
- 5.3 kW
- Power input (cooling)
- 1.83 kW
- Rating standard
- En 14825
Efficiency
- EER (standard condition)
- 2.73
- COP (heating)
- 3.27
- SEER (seasonal cooling)
- 5.28
- SCOP (seasonal heating)
- 4.08
- Energy class
- A
Refrigeration
- Refrigerant
- R32
- Refrigerant charge
- 0.9 kg
- Compressor type
- Rotary
- Inverter compressor
- Yes
Refrigerant piping
- Liquid pipe diameter
- 6.35 mm
- Gas pipe diameter
- 12.7 mm
- Max pipe length
- 30 m
- Max height difference
- 30 m
- Pre-charged pipe length
- 20 m

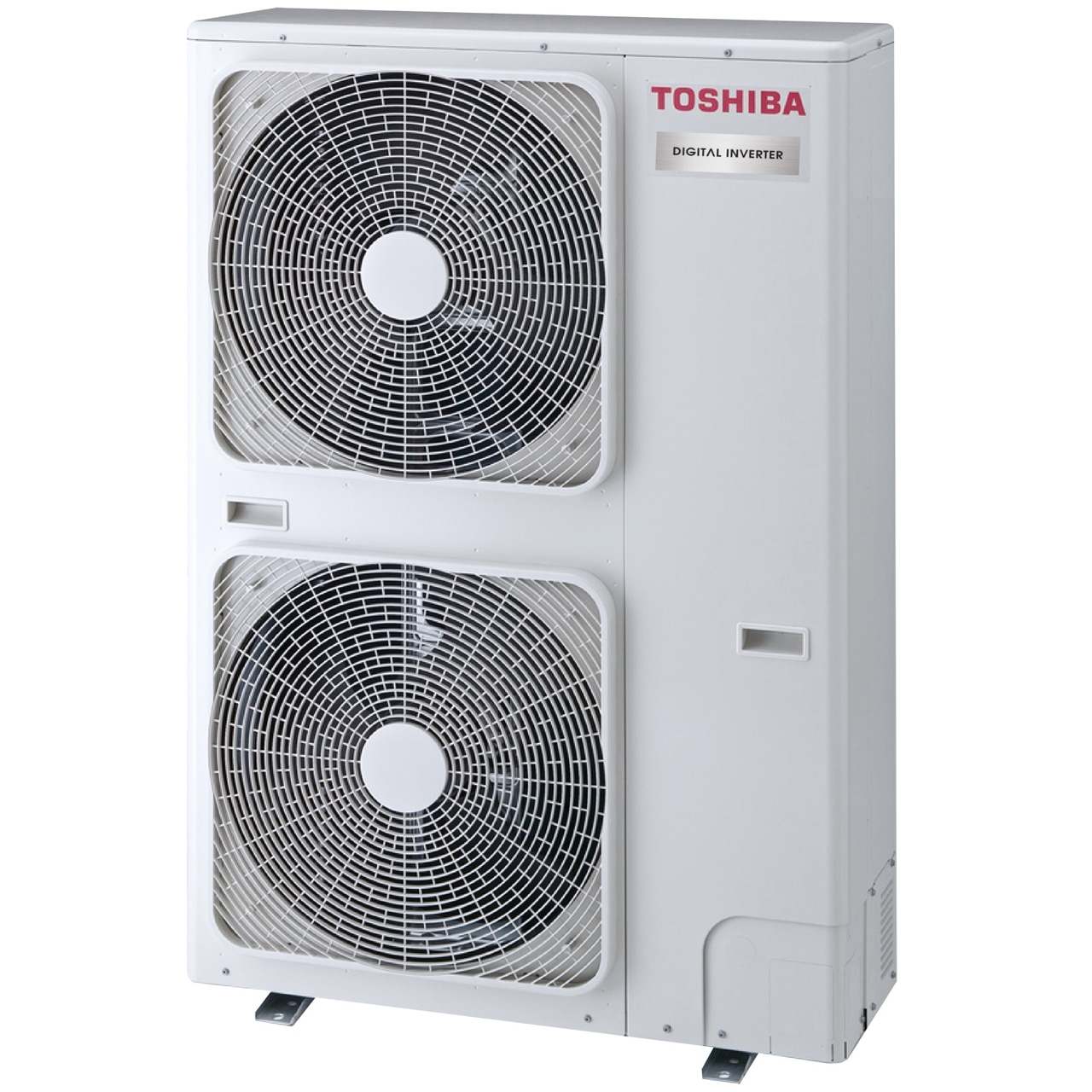

Outdoor unit (split sets)
- Outdoor unit model code
- RAV-GM561ATP-E1
- Outdoor sound pressure
- 46 dB(A)
- Outdoor unit height
- 550 mm
- Outdoor unit width
- 780 mm
- Outdoor unit depth
- 290 mm
- Outdoor unit weight
- 40 kg
Indoor unit
- Indoor unit type
- Ducted medium static
- Sound pressure (low / quiet mode)
- 25 dB(A)
- Drain pump included
- Yes
- Fresh-air intake
- Yes
Air performance
- Airflow (nominal / high)
- 800 m³/h
- Airflow (low)
- 480 m³/h
- External static pressure
- 30 Pa
Electrical
- Power supply
- Single
- Frequency
- 50
Acoustics
- Sound pressure
- 33 dB(A)
Operating envelope
- Min outdoor temperature (cooling)
- -15 °C
- Max outdoor temperature (cooling)
- 46 °C
- Min outdoor temperature (heating)
- -15 °C
Physical
- Height
- 275 mm
- Width
- 700 mm
- Depth
- 750 mm
- Weight
- 23 kg
- Mounting
- Ceiling recessed
Suitability
- Used in / applications
- Office, Retail, Residential villa, Hotel hospitality
Commercial
- Warranty
- 2 years
- Country of origin
- Japan
From the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
