Toshiba
Toshiba Digital Inverter 4 Way Cassette RAV-HM1401UTP-E
Toshiba Digital Inverter 4 Way Cassette
AvailabilitySpecial orderLead time 6 weeks
- Nominal cooling capacity
- 12.0kW
- Nominal heating capacity
- 13.0kW
- Power input (cooling)
- 4.29kW
- Rating standard
- En 14825
- EER (standard condition)
- 2.8
- COP (heating)
- 3.76
Henrik can take it from here.Sizing, pairing, budget price and lead time to your site.
Prices are not shown online. Henrik and the team quote them, excluding VAT.
Technical data
Capacity
- Nominal cooling capacity
- 12.0 kW
- Nominal heating capacity
- 13.0 kW
- Power input (cooling)
- 4.29 kW
- Rating standard
- En 14825
Efficiency
- EER (standard condition)
- 2.8
- COP (heating)
- 3.76
- SEER (seasonal cooling)
- 5.71
- SCOP (seasonal heating)
- 4.29
- Energy class
- A+
Refrigeration
- Refrigerant
- R32
- Refrigerant charge
- 2.1 kg
- Compressor type
- Rotary
- Inverter compressor
- Yes
Refrigerant piping
- Liquid pipe diameter
- 9.52 mm
- Gas pipe diameter
- 15.88 mm
- Max pipe length
- 50 m
- Max height difference
- 30 m
- Pre-charged pipe length
- 30 m

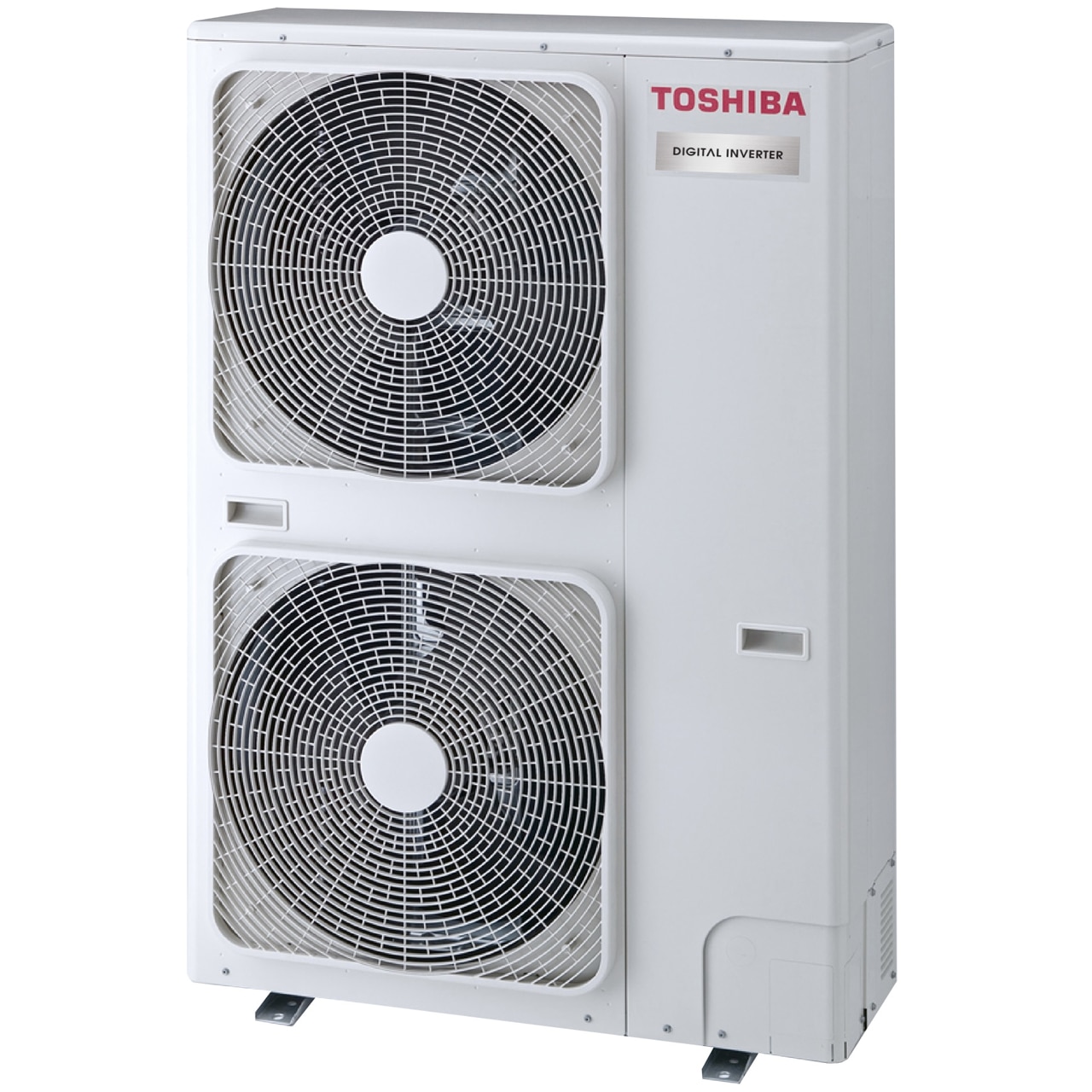

Outdoor unit (split sets)
- Outdoor unit model code
- RAV-GM1401AT8P-E
- Outdoor sound pressure
- 55 dB(A)
- Outdoor unit height
- 890 mm
- Outdoor unit width
- 900 mm
- Outdoor unit depth
- 320 mm
- Outdoor unit weight
- 68 kg
Indoor unit
- Indoor unit type
- Ceiling cassette 4way
- Sound pressure (low / quiet mode)
- 34 dB(A)
- Drain pump included
- Yes
Air performance
- Airflow (nominal / high)
- 2100 m³/h
- Airflow (low)
- 1230 m³/h
Electrical
- Power supply
- Three
- Frequency
- 50
Acoustics
- Sound pressure
- 44 dB(A)
- Sound power
- 59 dB(A)
Operating envelope
- Min outdoor temperature (cooling)
- -15 °C
- Max outdoor temperature (cooling)
- 46 °C
- Min outdoor temperature (heating)
- -15 °C
Physical
- Height
- 319 mm
- Width
- 840 mm
- Depth
- 840 mm
- Weight
- 24 kg
- Mounting
- Ceiling recessed
Suitability
- Used in / applications
- Office, Retail, Restaurant, Education
Commercial
- Warranty
- 2 years
- Country of origin
- Japan
From the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
