Mitsubishi Electric
Mitsubishi Electric MSZ LN MSZ-LN35VG3
Split — wall-mounted
AvailabilityIn stockLead time 2 days
- Nominal cooling capacity
- 3.5kW
- Nominal heating capacity
- 4.0kW
- Power input (cooling)
- 0.82kW
- Rating standard
- En 14825
- EER (standard condition)
- 4.27
- COP (heating)
- 4.88
Henrik can take it from here.Sizing, pairing, budget price and lead time to your site.
Prices are not shown online. Henrik and the team quote them, excluding VAT.
Technical data
Capacity
- Nominal cooling capacity
- 3.5 kW
- Nominal heating capacity
- 4.0 kW
- Power input (cooling)
- 0.82 kW
- Rating standard
- En 14825
Efficiency
- EER (standard condition)
- 4.27
- COP (heating)
- 4.88
- SEER (seasonal cooling)
- 9.5
- SCOP (seasonal heating)
- 5.1
- Energy class
- A+++
Refrigeration
- Refrigerant
- R32
- Refrigerant charge
- 0.85 kg
- Refrigerant GWP
- 675
- Inverter compressor
- Yes
Refrigerant piping
- Liquid pipe diameter
- 6.35 mm
- Gas pipe diameter
- 9.52 mm
- Max pipe length
- 20 m
- Max height difference
- 12 m
- Pre-charged pipe length
- 10 m
Outdoor unit (split sets)
- Outdoor unit model code
- MUZ-LN35VG3
- Outdoor sound pressure
- 49 dB(A)
- Outdoor unit height
- 550 mm
- Outdoor unit width
- 800 mm
- Outdoor unit depth
- 285 mm
- Outdoor unit weight
- 34 kg
Indoor unit
- Indoor unit type
- Wall mounted
- Sound pressure (low / quiet mode)
- 19 dB(A)
Air performance
- Airflow (nominal / high)
- 781 m³/h
- Airflow (low)
- 281 m³/h
Electrical
- Power supply
- Single
- Frequency
- 50
- Rated current
- 3.8 A
Connectivity
- Protocols / integration
- Wifi app
Acoustics
- Sound pressure
- 43 dB(A)
- Sound power
- 59 dB(A)
Physical
- Height
- 307 mm
- Width
- 890 mm
- Depth
- 233 mm

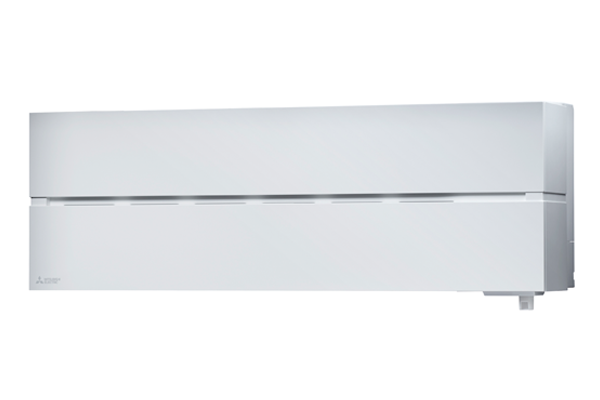

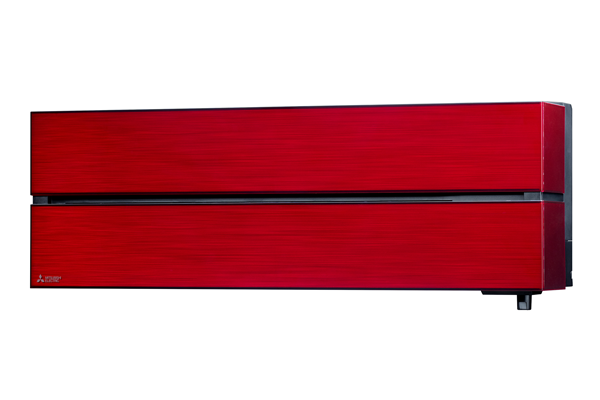

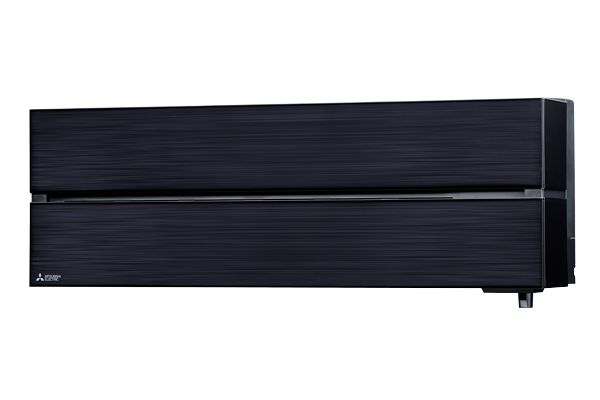

- Colour
- Ruby Red, Onyx Black, Pearl White, Natural White
Suitability
- Used in / applications
- Bedroom, Living area, Residential apartment, Residential villa
Commercial
- Warranty
- 2 years
- Country of origin
- Japan
From the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
