Gree
Gree All Match Floor Ceiling R32 FLR12HP230V1R32AH
Gree All Match Floor Ceiling R32 FLR12HP
AvailabilityIn stockLead time 2 days
- Nominal cooling capacity
- 3.5kW
- Nominal heating capacity
- 3.5kW
- Rating standard
- Ahri 210 240
- EER (standard condition)
- 13.0
- SEER (seasonal cooling)
- 23.0
- Refrigerant
- R32
Henrik can take it from here.Sizing, pairing, budget price and lead time to your site.
Prices are not shown online. Henrik and the team quote them, excluding VAT.
Technical data
Capacity
- Nominal cooling capacity
- 3.5 kW
- Nominal heating capacity
- 3.5 kW
- Rating standard
- Ahri 210 240
Efficiency
- EER (standard condition)
- 13.0
- SEER (seasonal cooling)
- 23.0
Refrigeration
- Refrigerant
- R32
- Refrigerant charge
- 0.8 kg
- Compressor type
- Rotary
- Inverter compressor
- Yes
Refrigerant piping
- Liquid pipe diameter
- 6.35 mm
- Gas pipe diameter
- 9.52 mm
- Max pipe length
- 20.1 m
- Max height difference
- 12.2 m
- Pre-charged pipe length
- 7.6 m

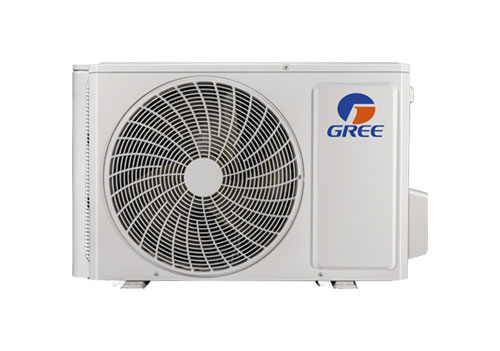

Outdoor unit (split sets)
- Outdoor unit model code
- VIR12HP230V1R32AO
- Outdoor sound pressure
- 52 dB(A)
- Outdoor unit height
- 555 mm
- Outdoor unit width
- 802 mm
- Outdoor unit depth
- 350 mm
- Outdoor unit weight
- 30.5 kg
Indoor unit
- Indoor unit type
- Under ceiling
- Sound pressure (low / quiet mode)
- 25 dB(A)
- Fresh-air intake
- No
Air performance
- Airflow (nominal / high)
- 700 m³/h
- Airflow (low)
- 420 m³/h
Electrical
- Nominal voltage
- 230 V
- Power supply
- Single
- Frequency
- 60
- Rated current
- 7.0 A
- Minimum circuit ampacity (MCA)
- 10.0 A
- Max overcurrent protection (MOCP)
- 15.0 A
Acoustics
- Sound pressure
- 40 dB(A)
Operating envelope
- Min outdoor temperature (cooling)
- -29 °C
- Max outdoor temperature (cooling)
- 50 °C
- Min outdoor temperature (heating)
- -30 °C
Physical
- Height
- 665 mm
- Width
- 870 mm
- Depth
- 235 mm
- Weight
- 25.0 kg
Compliance & certifications
- Certifications
- Ahri certified, Etl
Suitability
- Used in / applications
- Office, Retail, Restaurant
Commercial
- Warranty
- 2 years
- Country of origin
- China
From the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
