Daikin

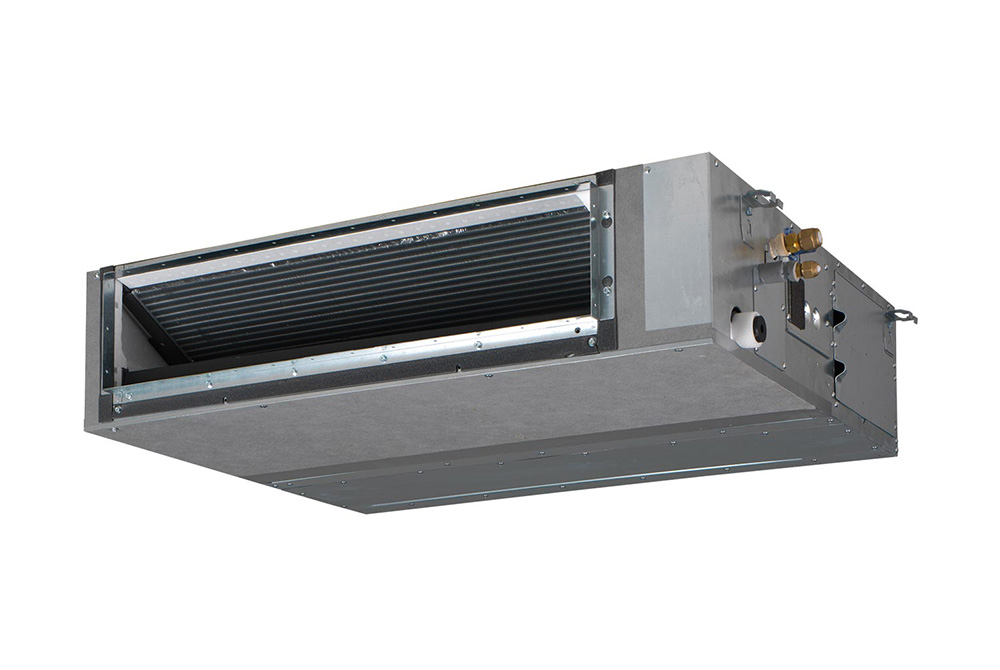

Daikin Sky Air FBA A FBA60A2VEB9
Split — ducted concealed
AvailabilityIn stockLead time 2 days
- Nominal cooling capacity
- 6.0kW
- Nominal heating capacity
- 7.0kW
- SEER (seasonal cooling)
- 6.15
- Refrigerant
- R32
- Refrigerant charge
- 1.55kg
- Refrigerant GWP
- 675
Henrik can take it from here.Sizing, pairing, budget price and lead time to your site.
Prices are not shown online. Henrik and the team quote them, excluding VAT.
Technical data
Capacity
- Nominal cooling capacity
- 6.0 kW
- Nominal heating capacity
- 7.0 kW
Efficiency
- SEER (seasonal cooling)
- 6.15
Refrigeration
- Refrigerant
- R32
- Refrigerant charge
- 1.55 kg
- Refrigerant GWP
- 675
- Inverter compressor
- Yes
Refrigerant piping
- Liquid pipe diameter
- 6.35 mm
- Gas pipe diameter
- 12.7 mm
- Max pipe length
- 50 m
- Max height difference
- 30 m
- Pre-charged pipe length
- 30 m
Outdoor unit (split sets)
- Outdoor unit model code
- RZAG60A2V1B
- Outdoor sound pressure
- 50 dB(A)
- Outdoor unit height
- 734 mm
- Outdoor unit width
- 870 mm
- Outdoor unit depth
- 373 mm
- Outdoor unit weight
- 52 kg
Indoor unit
- Indoor unit type
- Ducted medium static
- Sound pressure (low / quiet mode)
- 25 dB(A)
- Drain pump included
- Yes
Air performance
- Airflow (nominal / high)
- 1080 m³/h
- Airflow (low)
- 750 m³/h
- External static pressure
- 30 Pa
- Max static pressure
- 150 Pa
Electrical
- Power supply
- Single
- Frequency
- 50
Acoustics
- Sound pressure
- 30 dB(A)
- Sound power
- 56 dB(A)
Operating envelope
- Min outdoor temperature (cooling)
- -20 °C
- Max outdoor temperature (cooling)
- 52 °C
- Min outdoor temperature (heating)
- -20 °C
Physical
- Height
- 245 mm
- Width
- 1000 mm
- Depth
- 800 mm
- Weight
- 35 kg
- Mounting
- Ceiling recessed
Suitability
- Used in / applications
- Residential villa, Office, Retail, Hotel hospitality
Commercial
- Warranty
- 2 years
- Country of origin
- Japan
From the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
