Systemair

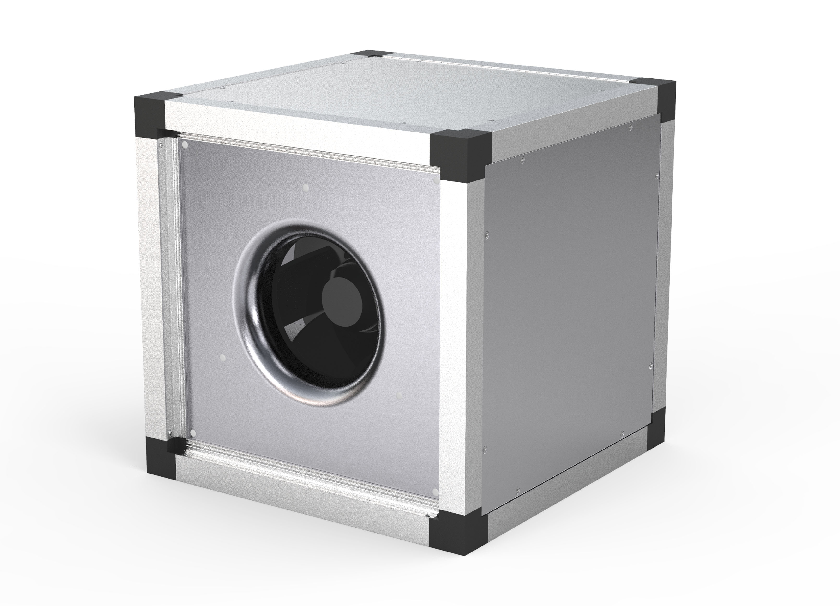

Systemair MUB 062 560EC Multibox
Fan
AvailabilityLimited stockLead time 2 days
- Airflow (nominal / high)
- 10861m³/h
- Fan motor
- Ec
- Fan type
- Box fan
- Impeller diameter
- 560mm
- Max air temperature (continuous)
- 60°C
- Speed control
- Ec 0 10v
Henrik can take it from here.Sizing, pairing, budget price and lead time to your site.
Prices are not shown online. Henrik and the team quote them, excluding VAT.
Technical data
Air performance
- Airflow (nominal / high)
- 10861 m³/h
- Fan motor
- Ec
Fan
- Fan type
- Box fan
- Impeller diameter
- 560 mm
- Max air temperature (continuous)
- 60 °C
- Speed control
- Ec 0 10v
Electrical
- Nominal voltage
- 400 V
- Power supply
- Three
- Frequency
- 50 60
- Rated power
- 2662 W
- Rated current
- 3.91 A
- IP rating
- IP55
Acoustics
- Sound power
- 65 dB(A)
Physical
- Weight
- 83 kg
Compliance & certifications
- Certifications
- Erp ecodesign, Amca, Epd
Suitability
- Used in / applications
- Office, Retail, Warehouse industrial, Rooftop outdoor, Coastal
Commercial
- Warranty
- 1 years
- Country of origin
- Sweden
From the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
