Systemair

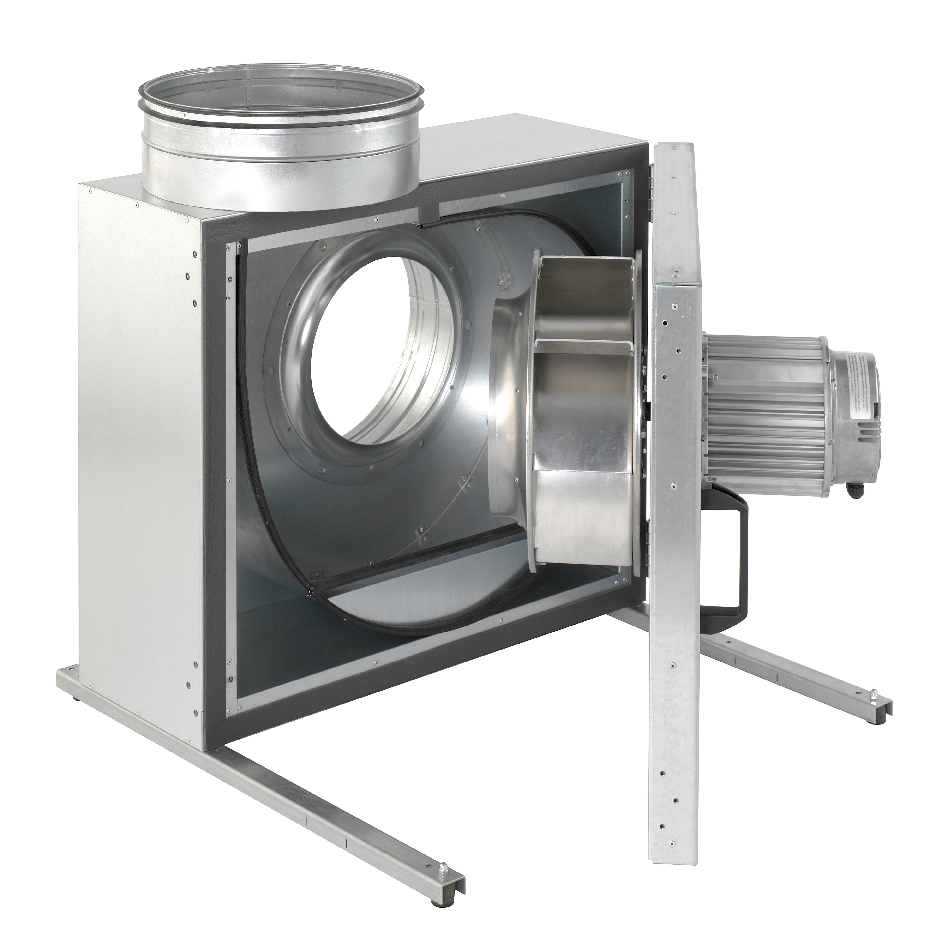

Systemair KBR 355EC
Fan
AvailabilityIn stockLead time 2 days
- Airflow (nominal / high)
- 3934m³/h
- Fan motor
- Ec
- Fan type
- Box fan
- Duct connection diameter
- 355mm
- Max air temperature (continuous)
- 120°C
- Speed control
- Ec 0 10v
Henrik can take it from here.Sizing, pairing, budget price and lead time to your site.
Prices are not shown online. Henrik and the team quote them, excluding VAT.
Technical data
Air performance
- Airflow (nominal / high)
- 3934 m³/h
- Fan motor
- Ec
Fan
- Fan type
- Box fan
- Duct connection diameter
- 355 mm
- Max air temperature (continuous)
- 120 °C
- Speed control
- Ec 0 10v
Electrical
- Nominal voltage
- 230 V
- Power supply
- Single
- Frequency
- 50 60
- Rated power
- 504 W
- Rated current
- 4.1 A
- IP rating
- IP55
Physical
- Weight
- 76.5 kg
- Casing material
- Galvanised steel
Compliance & certifications
- Certifications
- Epd
Suitability
- Used in / applications
- Kitchen exhaust, Restaurant, Hotel hospitality
Commercial
- Warranty
- 1 years
- Country of origin
- Sweden
From the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
