Greenheck · Fan
Greenheck AER M AER-M500
- 12013 m³/h
Systemair

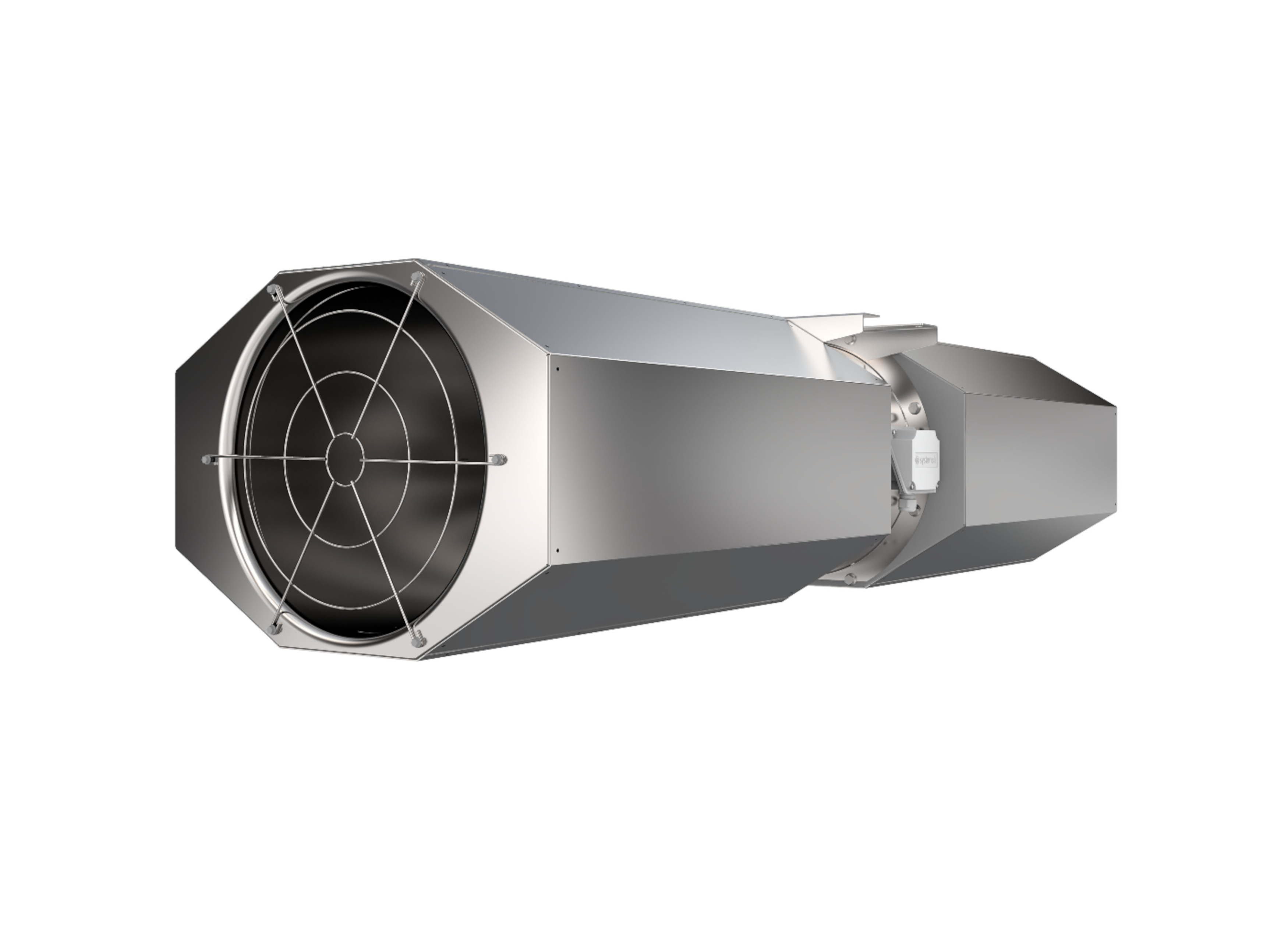

Systemair AJ8 315-2/4(B)-TR
Fan
AvailabilityIn stockLead time 2 days
- Airflow (nominal / high)
- 4680m³/h
- Airflow (low)
- 2160m³/h
- Fan motor
- Ac multi speed
- Fan type
- Jet fan
- Smoke extract rating (EN 12101-3)
- F300 60
- Speed control
- Multi speed
Henrik can take it from here.Sizing, pairing, budget price and lead time to your site.
Prices are not shown online. Henrik and the team quote them, excluding VAT.
Technical data
Air performance
- Airflow (nominal / high)
- 4680 m³/h
- Airflow (low)
- 2160 m³/h
- Fan motor
- Ac multi speed
Fan
- Fan type
- Jet fan
- Smoke extract rating (EN 12101-3)
- F300 60
- Speed control
- Multi speed
Electrical
- Nominal voltage
- 400 V
- Power supply
- Three
- Frequency
- 50
- Rated power
- 800 W
- Rated current
- 1.53 A
- IP rating
- IP55
Acoustics
- Sound pressure
- 56 dB(A)
Physical
- Weight
- 62.5 kg
- Casing material
- Galvanised steel
- Mounting
- Ceiling surface
Compliance & certifications
- Certifications
- En 12101 3
Suitability
- Used in / applications
- Car park, Smoke control, Warehouse industrial
Commercial
- Warranty
- 1 years
- Country of origin
- Sweden
From the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
