Mitsubishi Electric

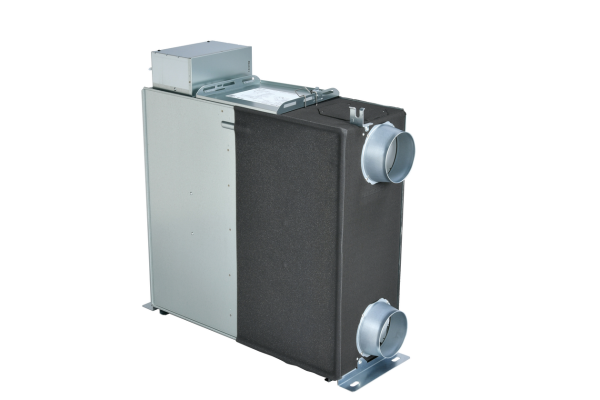

Mitsubishi Electric Lossnay LGH RVX3 E LGH-65RVX3-E
Mitsubishi Electric Lossnay LGH RVX3 E L
AvailabilityIn stockLead time 2 days
- Airflow (nominal / high)
- 650m³/h
- Airflow (low)
- 163m³/h
- External static pressure
- 150Pa
- Specific fan power
- 1360W/(m³/s)
- Heat recovery efficiency
- 72.5%
- Filter class
- G4
Henrik can take it from here.Sizing, pairing, budget price and lead time to your site.
Prices are not shown online. Henrik and the team quote them, excluding VAT.
Technical data
Air performance
- Airflow (nominal / high)
- 650 m³/h
- Airflow (low)
- 163 m³/h
- External static pressure
- 150 Pa
- Specific fan power
- 1360 W/(m³/s)
- Heat recovery efficiency
- 72.5 %
Filtration
- Filter class
- G4
Electrical
- Frequency
- 50
- Rated power
- 245 W
Acoustics
- Sound pressure
- 37.5 dB(A)
Physical
- Height
- 404 mm
- Width
- 908 mm
- Depth
- 954 mm
- Weight
- 41 kg
Suitability
- Used in / applications
- Office, Education, Healthcare, Hotel hospitality, Retail
Commercial
- Warranty
- 2 years
- Country of origin
- Japan
From the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
