Mitsubishi Electric

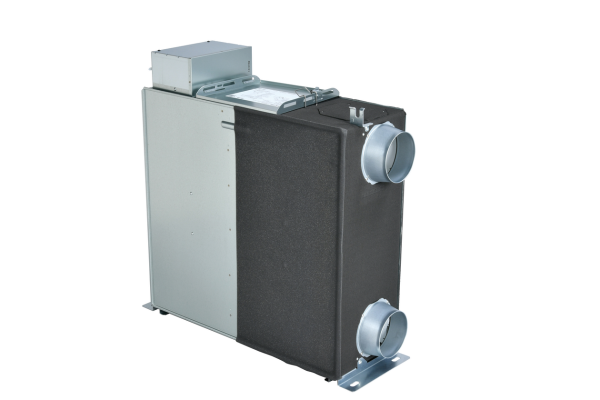

Mitsubishi Electric Lossnay LGH RVX3 E LGH-200RVX3-E
Mitsubishi Electric Lossnay LGH RVX3 E L
AvailabilityIn stockLead time 2 days
- Airflow (nominal / high)
- 2000m³/h
- Airflow (low)
- 500m³/h
- External static pressure
- 170Pa
- Specific fan power
- 1540W/(m³/s)
- Heat recovery efficiency
- 76.5%
- Filter class
- G4
Henrik can take it from here.Sizing, pairing, budget price and lead time to your site.
Prices are not shown online. Henrik and the team quote them, excluding VAT.
Technical data
Air performance
- Airflow (nominal / high)
- 2000 m³/h
- Airflow (low)
- 500 m³/h
- External static pressure
- 170 Pa
- Specific fan power
- 1540 W/(m³/s)
- Heat recovery efficiency
- 76.5 %
Filtration
- Filter class
- G4
Electrical
- Frequency
- 50
- Rated power
- 855 W
Acoustics
- Sound pressure
- 41.5 dB(A)
Physical
- Height
- 808 mm
- Width
- 1144 mm
- Depth
- 1231 mm
- Weight
- 108 kg
Suitability
- Used in / applications
- Office, Education, Healthcare, Hotel hospitality, Retail
Commercial
- Warranty
- 2 years
- Country of origin
- Japan
From the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
