Trox

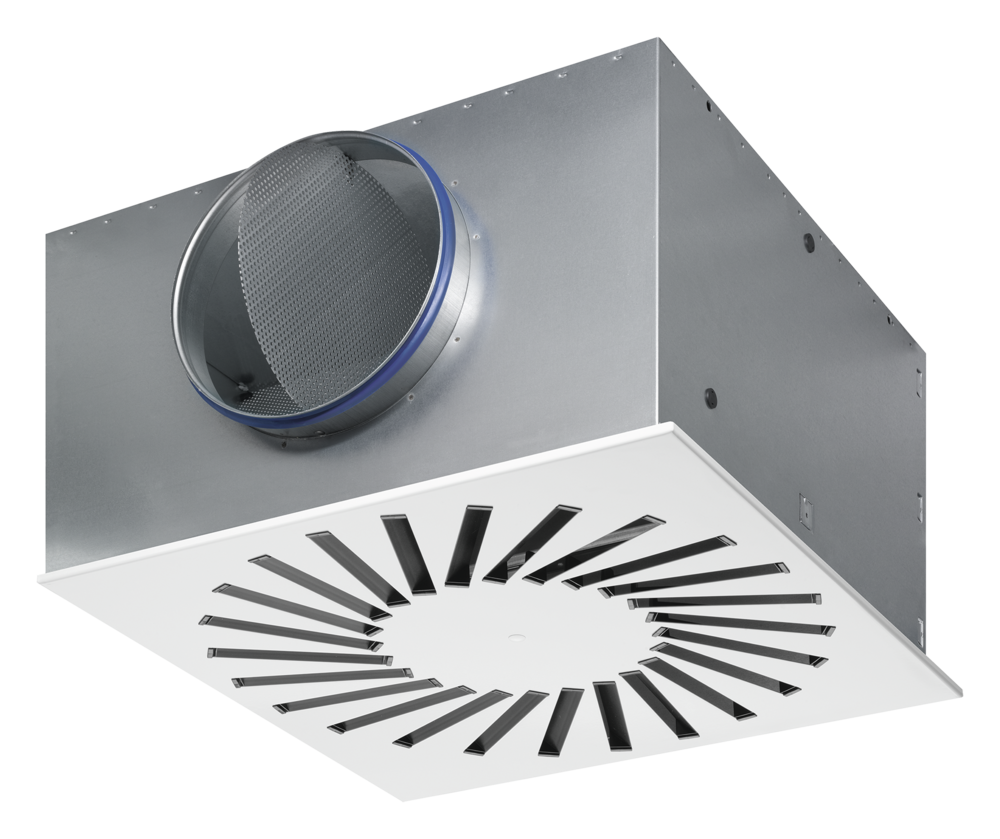

Trox VDW-Q-Z-H/825×72
Air terminal (diffuser / grille / louvre)
AvailabilityIn stockLead time 2 days
- Neck size
- 313mm
- Face width
- 825mm
- Face height
- 825mm
- Connection shape
- Round
- Airflow (min)
- 357m³/h
- Airflow (max)
- 1692m³/h
Henrik can take it from here.Sizing, pairing, budget price and lead time to your site.
Prices are not shown online. Henrik and the team quote them, excluding VAT.
Technical data
Air distribution
- Neck size
- 313 mm
- Face width
- 825 mm
- Face height
- 825 mm
- Connection shape
- Round
- Airflow (min)
- 357 m³/h
- Airflow (max)
- 1692 m³/h
- Material
- Galvanised steel
- Finish / colour
- RAL 9010 pure white diffuser face, air control blades similar to RAL 9005 jet black
Air terminal
- Terminal type
- Swirl diffuser
Physical
- Weight
- 21.2 kg
- Casing material
- Galvanised steel
- Mounting
- Ceiling recessed
Suitability
- Used in / applications
- Office, Retail, Education, Hotel hospitality, Restaurant
Commercial
- Warranty
- 1 years
- Country of origin
- Germany
From the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
